Introduction

Modern vehicles are equipped with numerous sensors that continuously monitor engine performance, emissions, fuel efficiency, and overall system health. Accessing this data is possible through the On-Board Diagnostics (OBD) protocol, a standardized system implemented in most vehicles manufactured after the mid-1990s. This article explains how OBD works, how to read sensor data, and what is required to build a system that communicates with a vehicle.

What is OBD?

On-Board Diagnostics (OBD) is a vehicle’s self-diagnostic and reporting system. The most widely used version today is OBD-II, which provides a universal interface for retrieving diagnostic trouble codes (DTCs) and real-time sensor data.

OBD-II allows external devices to communicate with a vehicle’s Electronic Control Unit (ECU) and retrieve information such as:

• Engine RPM
• Vehicle speed
• Coolant temperature
• Throttle position
• Fuel system status
• Oxygen sensor readings

How OBD Communication Works

OBD communication is typically done via a 16-pin connector located under the dashboard. A device (scanner, microcontroller, or mobile app) connects to this port and sends requests to the ECU using specific protocols.

Common communication protocols include:

• CAN (Controller Area Network) – most modern vehicles
• ISO 9141-2
• ISO 14230 (KWP2000)
• SAE J1850 (PWM/VPW)

The ECU responds with data encoded in hexadecimal format, which must be decoded according to OBD standards.

Required Hardware

To read OBD data, you typically need:

1. OBD-II Adapter
   A device such as ELM327 converts OBD signals into a readable format (UART, Bluetooth, Wi-Fi).
2. Microcontroller or Mobile Device
   • Arduino / ESP32 / Raspberry Pi
   • Android or iOS device
3. Connection Interface
   • USB
   • Bluetooth
   • Wi-Fi

Data Request and Response

OBD uses a request-response model. Each piece of data is identified by a Parameter ID (PID).

Example:

• Request: 010C → Engine RPM
• Response: 41 0C 1A F8

To decode RPM:

RPM = ((A * 256) + B) / 4
RPM = ((0x1A * 256) + 0xF8) / 4 = 1726 RPM

Example Workflow

1. Connect OBD adapter to the vehicle
2. Pair adapter with your device (Bluetooth/Wi-Fi)
3. Send a PID request (e.g., 010D for speed)
4. Receive ECU response
5. Parse and convert the data
6. Display or store the result

Software Implementation

In mobile development (e.g., Flutter or Android), communication is typically done via serial/Bluetooth APIs. A simple workflow includes:

• Establishing connection with the adapter
• Sending AT commands to initialize the device
• Sending OBD commands (PIDs)
• Parsing responses

Example initialization commands:

ATZ      // Reset
ATE0     // Echo off
ATL0     // Linefeeds off
ATS0     // Spaces off
ATSP0    // Automatic protocol detection

Use Cases

• Vehicle diagnostics and fault detection

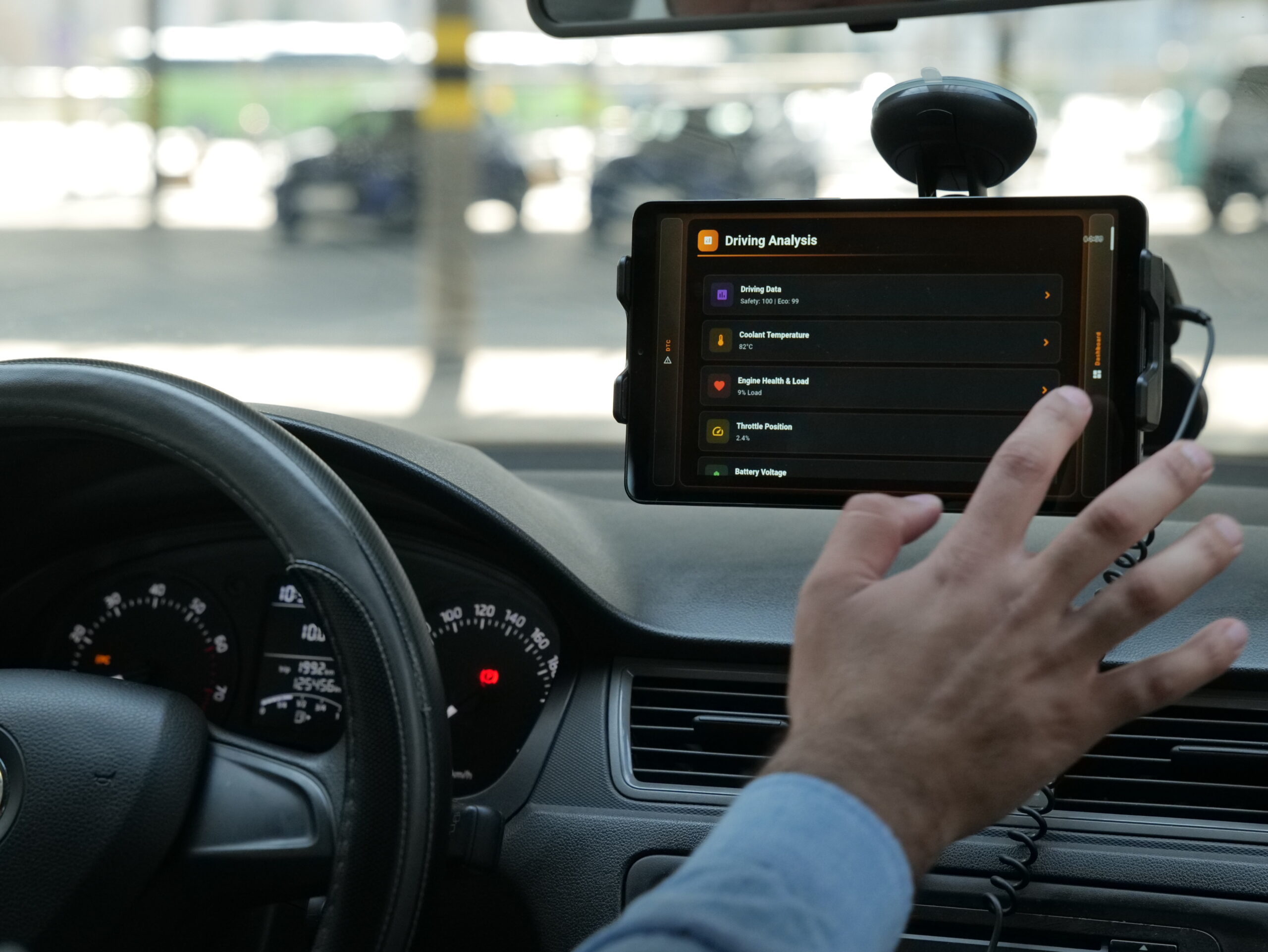

• Real-time dashboards (speed, RPM, temperature)
• Fuel efficiency tracking
• Fleet management systems
• Mobile apps for drivers

Challenges

• Different vehicles may support different PIDs
• Response timing and latency
• Data interpretation requires correct formulas
• Bluetooth connection stability issues

Conclusion

Reading vehicle sensor data using the OBD protocol enables developers to build powerful automotive applications. With the right hardware and understanding of PID-based communication, it is possible to access real-time data from a vehicle’s ECU and transform it into meaningful insights. This technology plays a critical role in diagnostics, performance monitoring, and modern smart vehicle solutions.
